Fast Automatic Mask Making Machine / Non Woven Face Mask Production Line

Ask Lasest Price
Brand Name :	OEM
Model Number :	Automatic Mask Making Machine
Certification :	CE / FDA
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	200000pcs/day
Delivery Time :	3 work days

Add to Cart

Product Details
Company Profile

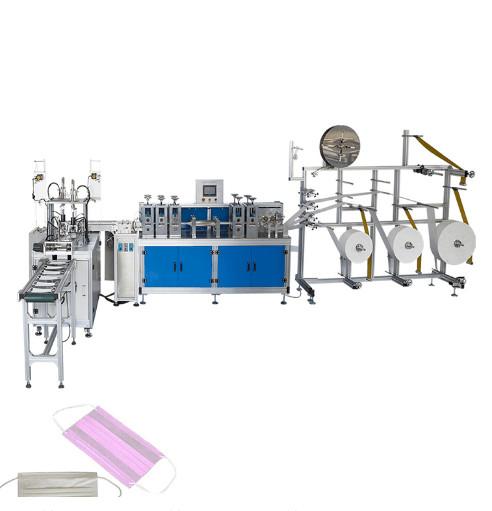

Fast Automatic Mask Making Machine / Non Woven Face Mask Production Line

Fast Automatic Mask Making Machine / Non Woven Face Mask Production Line

Non Woven Face Mask Production Line Main Features:

1. Adopting aluminum alloy rack which is more light and solider

2. High stability

3. one output line , high capacity

4. Fully Automatically , make outside earloop welding togther with

mask producing process which can save labor , once non woven raw

material in unwinding part use up , the machine can automatically stop .

Non Woven Face Mask Production Line Application

1. The machine can produce 1-4 layers of non-woven body masks. Specifications can be adjusted. It can produce 125-180 mm long and 80-110 mm wide masks. The thickness of the masks can be adjusted within a certain range. The length of the nostril line can be adjusted arbitrarily. Under the condition of replacing the mould, it can produce non-standard masks of arbitrary length. It can produce single and double nostrils.

2. The mask piece is output by conveyor belt, the speed is adjustable, the piece is orderly, the product quality is stable, the operation is convenient and the production efficiency is high.

3. All-aluminium profile machine is neat and beautiful, no welding, no spray paint. Man-machine interface touch screen control, built-in time, total output, daily output, set the number of automatic alarm and shutdown, digital keys to adjust the chip speed.

4. The motor adopts the motor imported from Taiwan. The magnetic wheel reducer has braking function, and the noise is very low.

5. The mask is formed by ultrasonic welding, which has superior performance and high-speed flaking.

Non Woven Face Mask Production Line Parameters

Product specification
Equipment size	6850mm(L)3600mm(W)1900mm(H)
Equipment weight	5000kg
Working power	220VAC
Compressed gas pressure	0.5-0.7MPa
Productivity	80-120/min
Pass rate of production	99%
Equipment failure rate	3%
Use environment	temperature:10-35℃;humidity:5-35%HR No flammable, corrosive gas, no dust (cleanliness no less than 100,000)
Rated power	9KW
Machine type	disposable non woven machine
Mask specification	175mm*95mm

Details

FAQ

Q1: How much does your equipment cost?
Answer: The price of our equipment is determined according to the delivery period. The longer the delivery period, the higher the price.

Q2: How long is the delivery time of your equipment?
Answer: The current delivery time of the automatic mask machine is 20 days.

Q3: How about your after-sales service?
Answer: We provide 1 year warranty service. After the equipment is purchased, there will be an operation video to help you quickly master the equipment.
